Cooling PUMP Rebuild Kit. Coolant+Oil SEAL set. Honda CRF250-300L, CB/CBR250-300, CMX300 series

Add to comparison

Coolant+Oil SEAL set. Cooling pump rebuilt kit.

oem part set to fix the pump shaft leaking issue, either oil or coolant.

Description
Reviews
Description

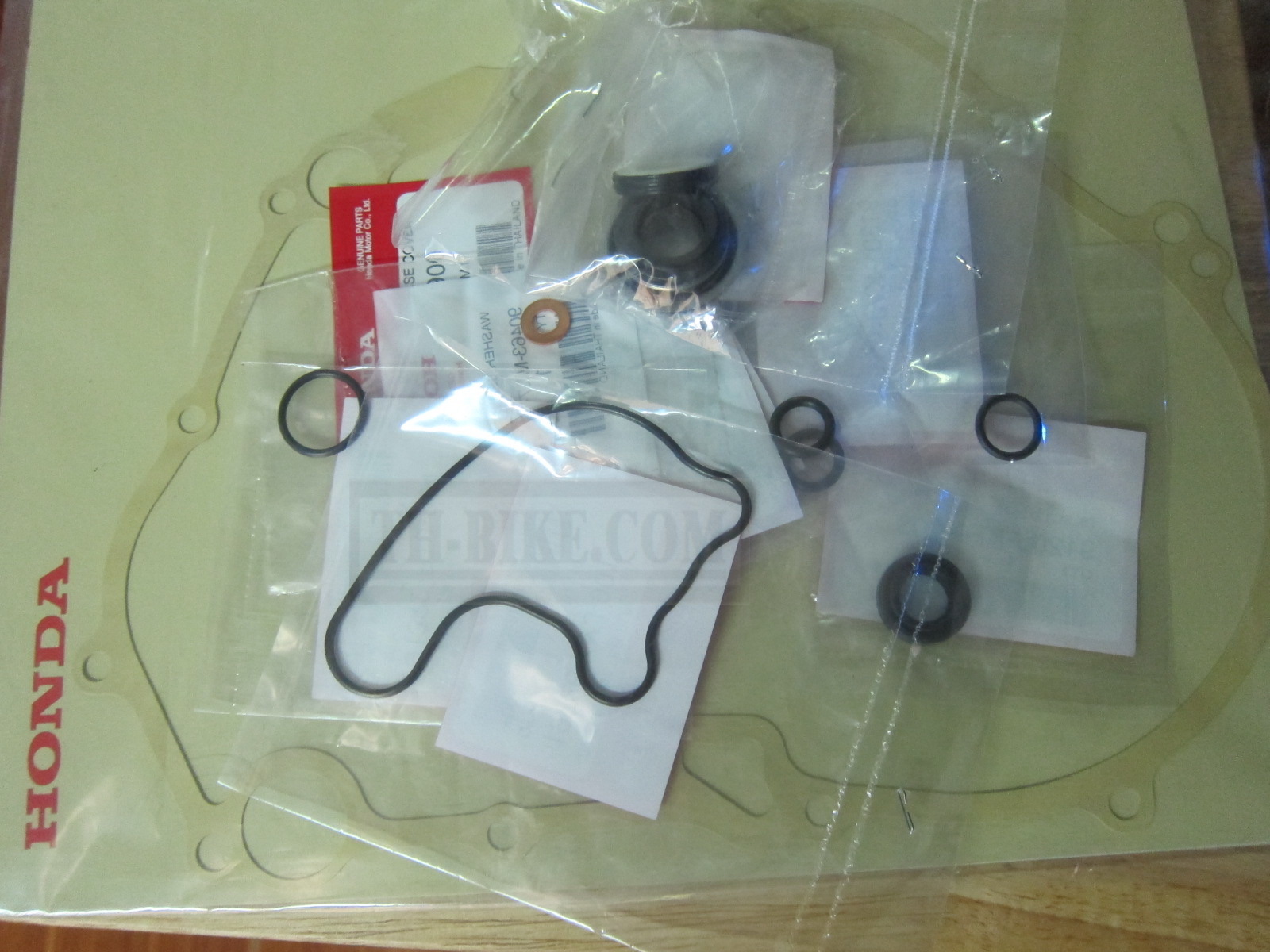

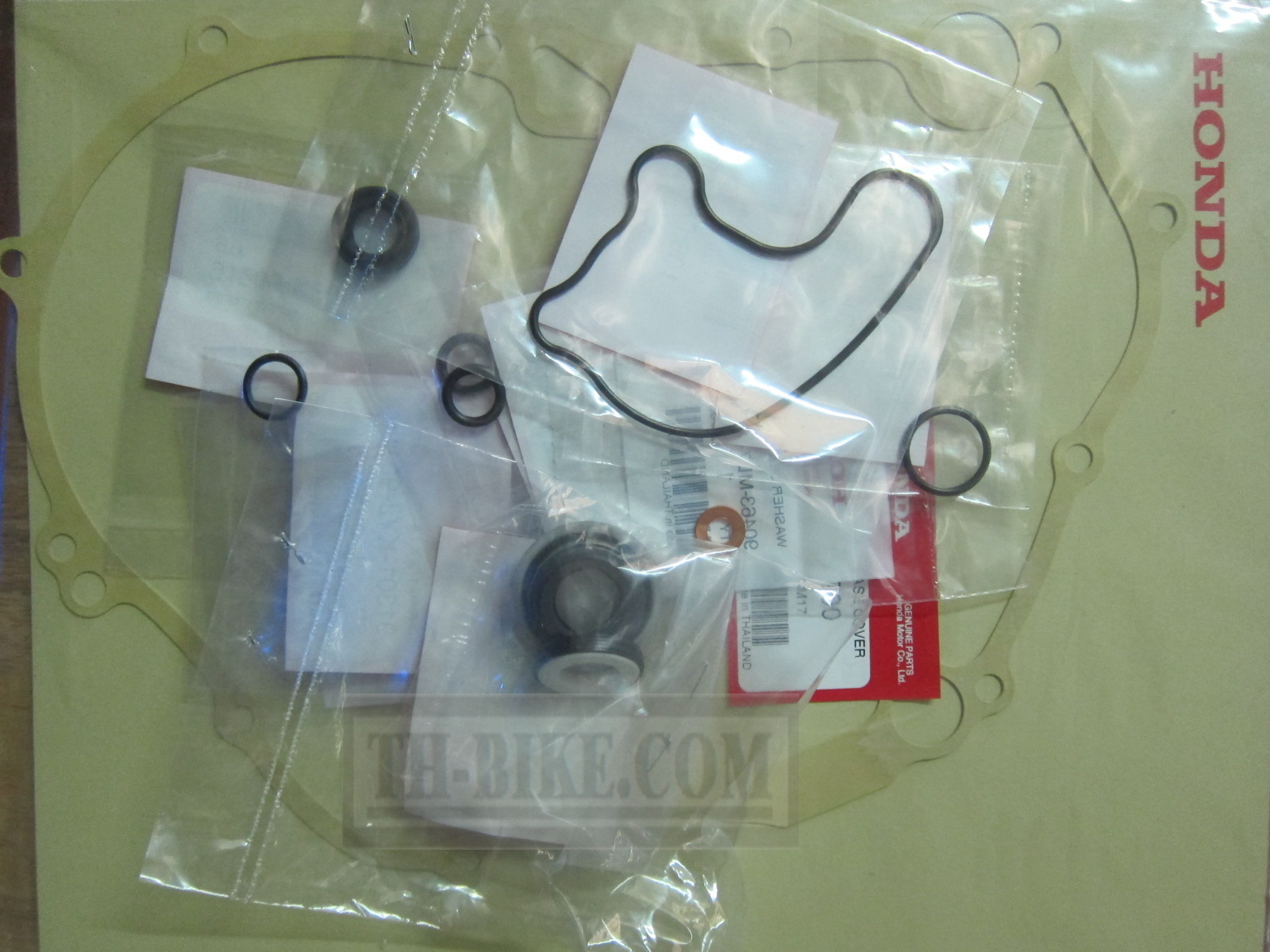

Cooling pump rebuild lit.

Consist from OEM parts Honda:

QTY Part number Description
1 19217-P72-013 SEAL, MECHANICAL
1 91205-KF0-003 OIL SEAL, 12X20X5 (ARAI)
1 11394-KYJ-900 GASKET, R. CRANKCASE COVER
1 19226-KYJ-901 GASKET, WATER PUMP COVER
1 91322-PT0-004 O-RING, 17.8X1.9 (ARAI)
2 91301-KYJ-901 O-RING, 11.8X1.9
2 91302-KYJ-901 O-RING, 9.8X2.4
1 90463-ML7-000 WASHER, SEALING, 6.5MM

Some part numbers may be changed with another OEM ones.

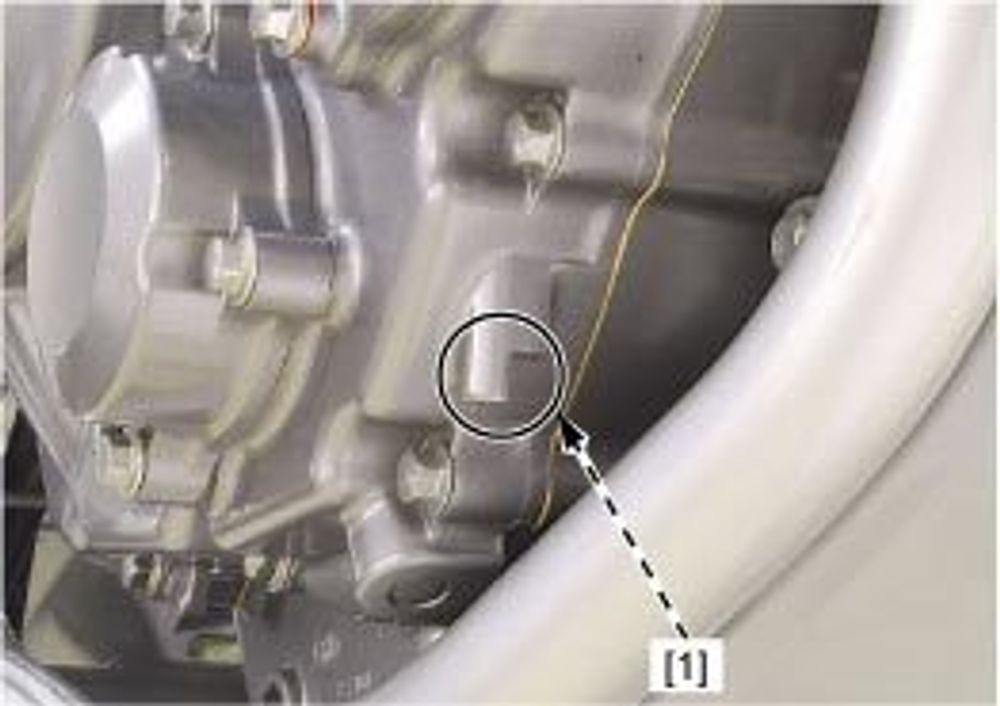

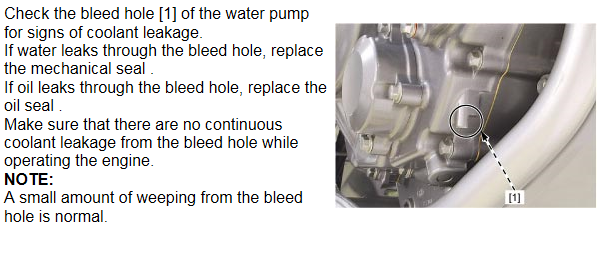

Check the bleed hole of the water pump for signs of coolant leakage.

If water leaks through the bleed hole, replace the mechanical seal .
If oil leaks through the bleed hole, replace the oil seal .
Make sure that there are no continuous coolant leakage from the bleed hole while operating the engine.
NOTE:
A small amount of weeping from the bleed hole is normal.
